Tarangify — LoRa sensor modules built to deploy
The Tarangify product line is our in-house LoRaWAN sensor module ecosystem. RAK3172-based, production-tested, and available with firmware customisation for your specific application.
Module variants
Three variants cover the most common LoRaWAN deployment patterns. All share the same base hardware and firmware architecture.

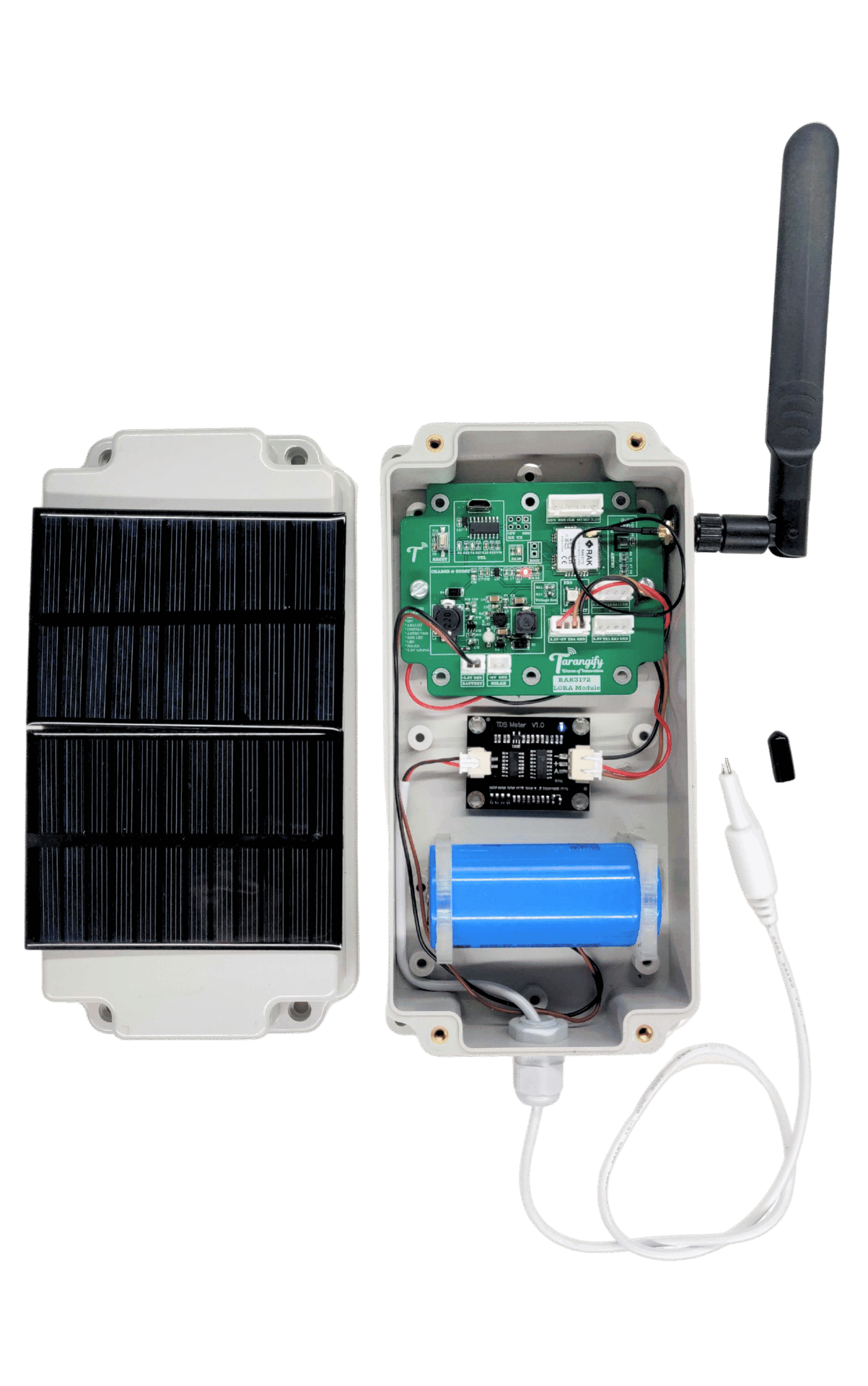

T-LORA-N01
Standard LoRaWAN sensor node
The base module in the Tarangify line. RAK3172-powered, with onboard temperature and humidity sensing. Drop-in compatible with standard LoRaWAN gateways.
Specifications
- MCU
- RAK3172 (STM32WLE5)
- Protocol
- LoRaWAN Class A/C
- Frequency
- IN865 / EU868 / US915
- Sensors
- Temperature, Humidity
- Power
- 3.3V, battery-optimised
- Status
- In production
.png&w=3840&q=75)

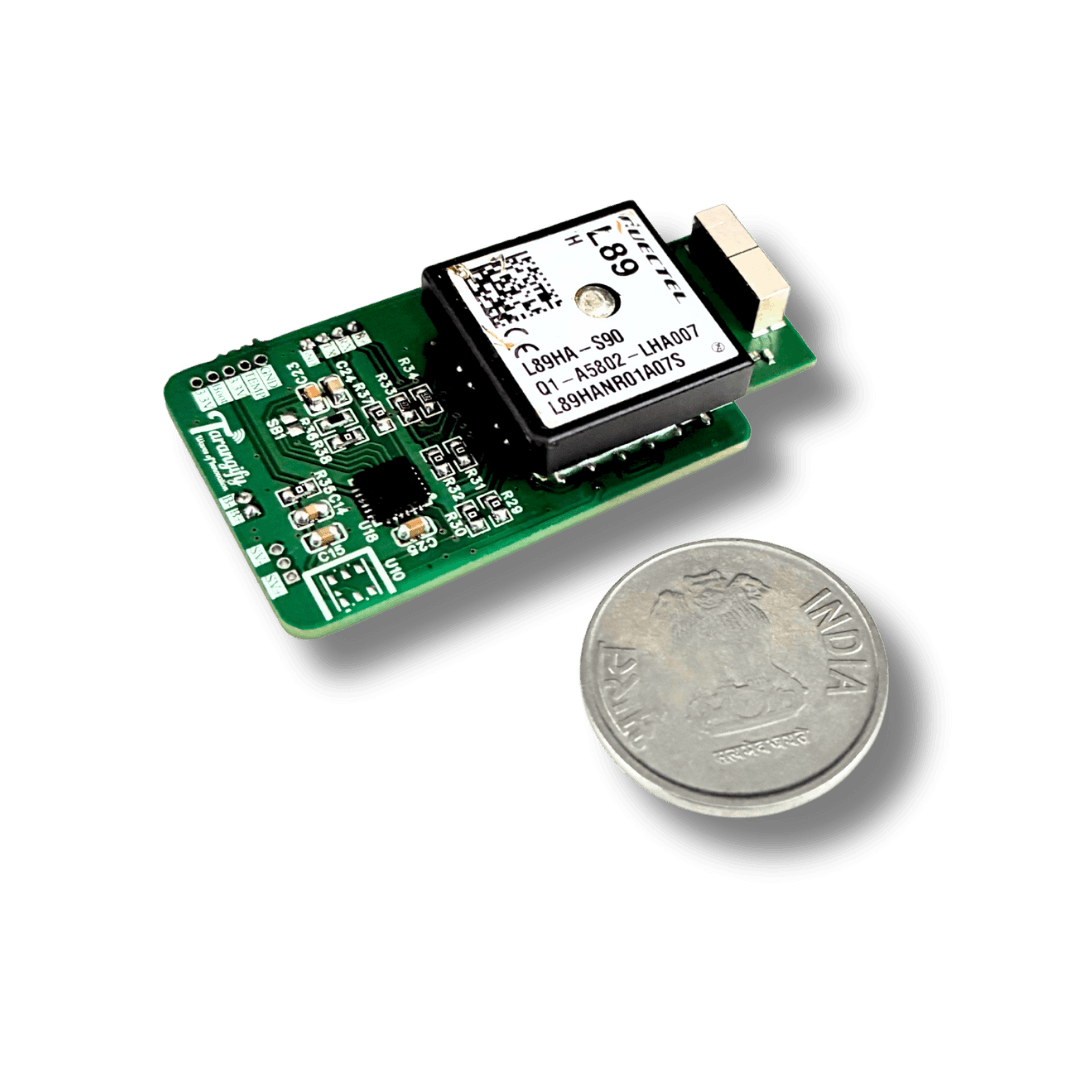

T-LORA-N01-GPS
LoRaWAN node with GPS tracking
Extends the N01 with an integrated GPS module for asset tracking and geo-fenced applications. Same compact footprint, adds location data to every uplink.
Specifications
- MCU
- RAK3172 (STM32WLE5)
- Protocol
- LoRaWAN Class A
- GNSS
- GPS + GLONASS
- Accuracy
- 2.5m CEP
- Power
- 3.3V, battery-optimised
- Status
- In production
T-LORA-N01-4CH
4-channel digital/analog I/O node
Industrial variant with four configurable I/O channels for digital inputs, analog sensors, or pulse counting. Suited for industrial monitoring and utility metering.
Specifications
- MCU
- RAK3172 (STM32WLE5)
- Protocol
- LoRaWAN Class A/C
- I/O
- 4× digital/analog, configurable
- Input range
- 0–10V / 4–20mA
- Enclosure
- DIN-rail ready
- Status
- In production
Under the hood
Engineering decisions that matter
RAK3172 core
Every Tarangify module uses the RAK3172, which integrates an STM32WLE5 SoC with a sub-GHz radio. Low power, proven in the field, AT-command and custom firmware support.
LoRaWAN certified
All variants support LoRaWAN 1.0.3 / 1.1 with OTAA and ABP join, adaptive data rate, and confirmed/unconfirmed uplinks. Compatible with TTN, Chirpstack, and private LNS.
In-house manufacturing
Modules are assembled and tested in our Ahmedabad workshop. Every unit passes functional RF and sensor verification before leaving the floor.
Custom firmware available
Need a specific payload format, sensor, or duty cycle? We write firmware against your requirements. Source or binary delivery, OTA update support included.
Need a custom variant or bulk order?
We manufacture in Ahmedabad and can customise firmware, add sensors, or adjust form factor for your deployment. Get in touch with your requirements.
